12 1/4"(311.1mm) PDC diamond bit 5 blades

Lugar de origen:

Hebei, China

Certificación:

ISO9001

Contacta con nosotros

Solicitar una cita

Detalles del producto

Nombre del producto:

Pedazos de PDC

Formación:

Suavidad a duro

Material:

Acero de carburo

Material del cuerpo:

Matriz

Conexión:

API

Origen:

Porcelana

Condiciones de pago y envío

Precio

Negociable

Detalles de empaquetado

Según las necesidades del cliente

Tiempo de entrega

Entre 5 y 15 días hábiles

Condiciones de pago

T/T

Capacidad de la fuente

50000 unidades/mes

Productos relacionados

Broca de diamante PDC para pozos de petróleo y agua, 5 cuchillas, doble hilera de cortadores, brocas en venta

Obtenga el mejor precio

BROCA DE PERFORACIÓN PDC DE 6 1/8 PARA PERFORACIÓN PETROLERA

Obtenga el mejor precio

Broca PDC de punta plana para detección de pozos horizontales, herramienta de perforación forjada, broca PDC de 8 1/2 pulgadas (215,9 mm) con 3 cuchillas

Obtenga el mejor precio

Aguas Pozo de perforación de piedra de roca herramientas de corte 3 hojas 8 1/2 pulgadas ((215.9 mm) Perforación Bits matriz Cuerpo Diamante Pdc Bit

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

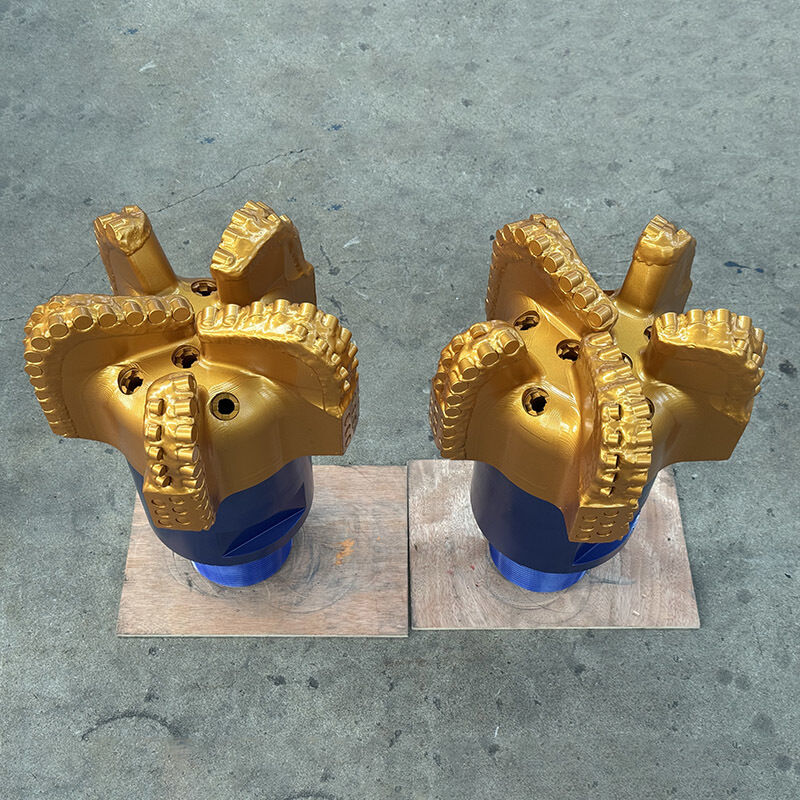

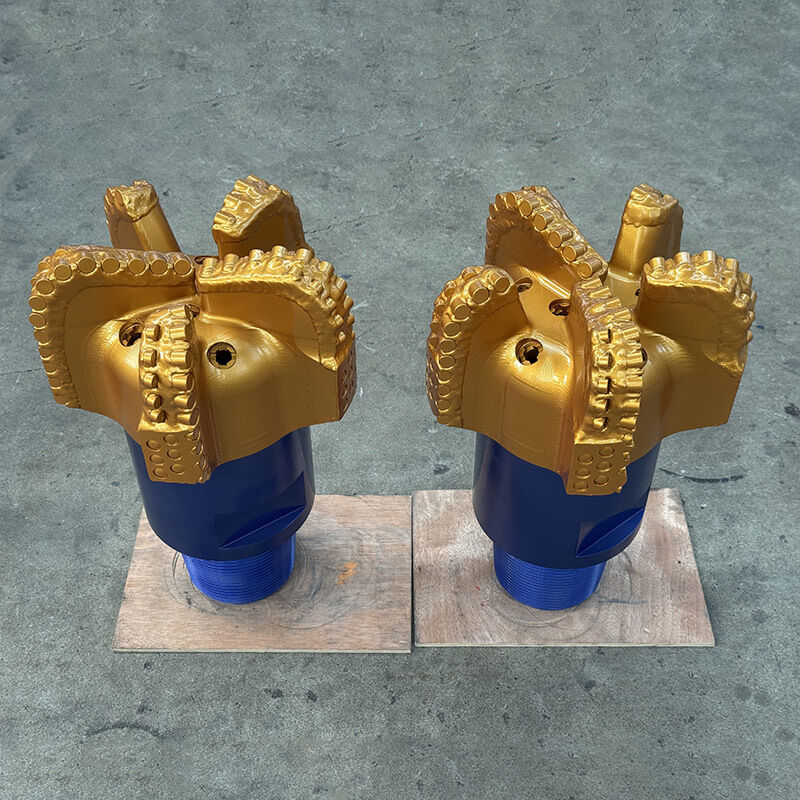

12 1/4"(311.1mm) PDC diamond bit 5 blades

Polycrystalline diamond composite drill bit (PDC drill bit) is a geological drilling tool with artificial polycrystalline diamond composite as the core cutting unit. Its cutting structure is composed of a circular composite piece and a tungsten carbide substrate bonded by high-temperature and high-pressure sintering technology, and fixed to the drill head body by welding. Since its application in the 1970s, this drill bit has increased its single drill bit footage to 17900 meters through innovative cutting tooth shapes (conical teeth, chiseled teeth), optimized chip removal fluid dynamics, and upgraded 3D printing manufacturing technology

PRODUCT SPECIFICATIONS
product name	5 1/2 inch CM1305 matrix body PDC bit
size	5 1/2 inch,139.7mm
model number	CM1305
series	CM
body type	matrix body
primary cutter size	13mm
number of nozzle	5
number of blade	5
Make Up Torque(KN.m)	10.4~11.4
application	water well,oil well,HDD,exploration,etc
weight	23kg
certificate	SY/T5164,ISO9001:2008
ROCOMMENDED ROCK FORMATION
soft to medium formation with lower compressive strength and good drillability,such as marl,shale,lignite,sandstone,anhydrite,tuff ,etc.
RECOMMENDED OPERATING PARAMETERS
Rotary Speed(RPM)	60~250
Weight On Bit(WOB)	5~45
Max.WOB(KN)	80
Flow Rate(lps)	10~25

12 1/4"(311.1mm) PDC diamond bit 5 blades 0

Company Profile

Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
