Oil Water Well 5 Blades Double Row Cutters Diamond Pdc Drilling Bit Bits For Sale

Lugar de origen:

Hebei, China

Certificación:

ISO9001

Contacta con nosotros

Solicitar una cita

Oil Water Well 5 Blades Double Row Cutters Diamond Pdc Drilling Bit Bits For Sale

Detalles del producto

Nombre del producto:

Pedazos de PDC

Formación:

Suavidad a duro

Material:

Acero de carburo

Material del cuerpo:

Matriz

Conexión:

API

Origen:

Porcelana

Condiciones de pago y envío

Precio

Negociable

Detalles de empaquetado

Según las necesidades del cliente

Tiempo de entrega

Entre 5 y 15 días hábiles

Condiciones de pago

T/T

Capacidad de la fuente

50000 unidades/mes

Productos relacionados

BROCA DE PERFORACIÓN PDC DE 6 1/8 PARA PERFORACIÓN PETROLERA

Obtenga el mejor precio

Broca PDC de punta plana para detección de pozos horizontales, herramienta de perforación forjada, broca PDC de 8 1/2 pulgadas (215,9 mm) con 3 cuchillas

Obtenga el mejor precio

Aguas Pozo de perforación de piedra de roca herramientas de corte 3 hojas 8 1/2 pulgadas ((215.9 mm) Perforación Bits matriz Cuerpo Diamante Pdc Bit

Obtenga el mejor precio

Broca PDC de 8 1/2 pulgadas (215,9 mm) con 3 cuchillas

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

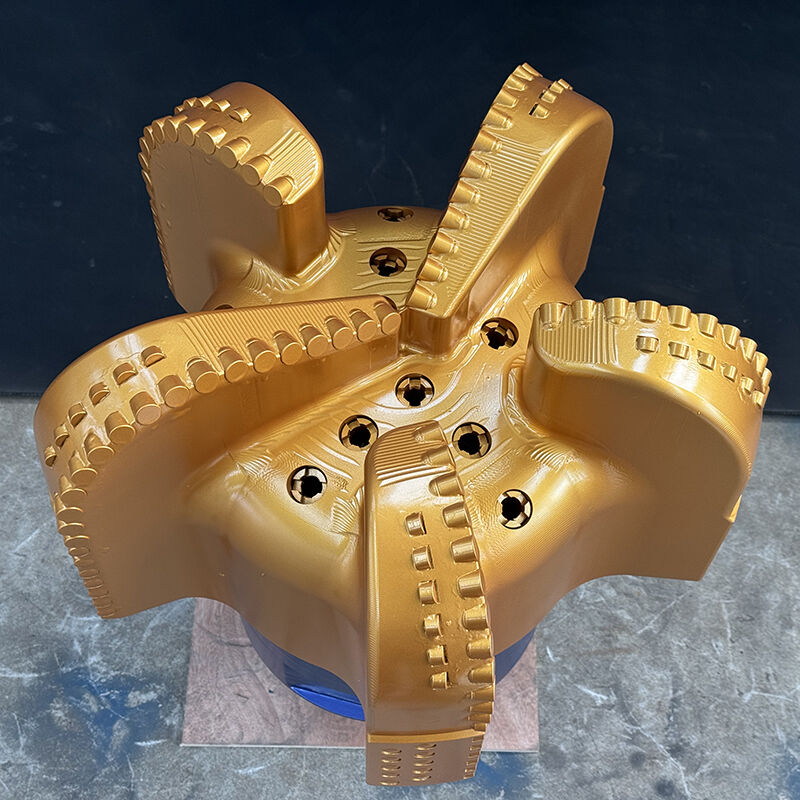

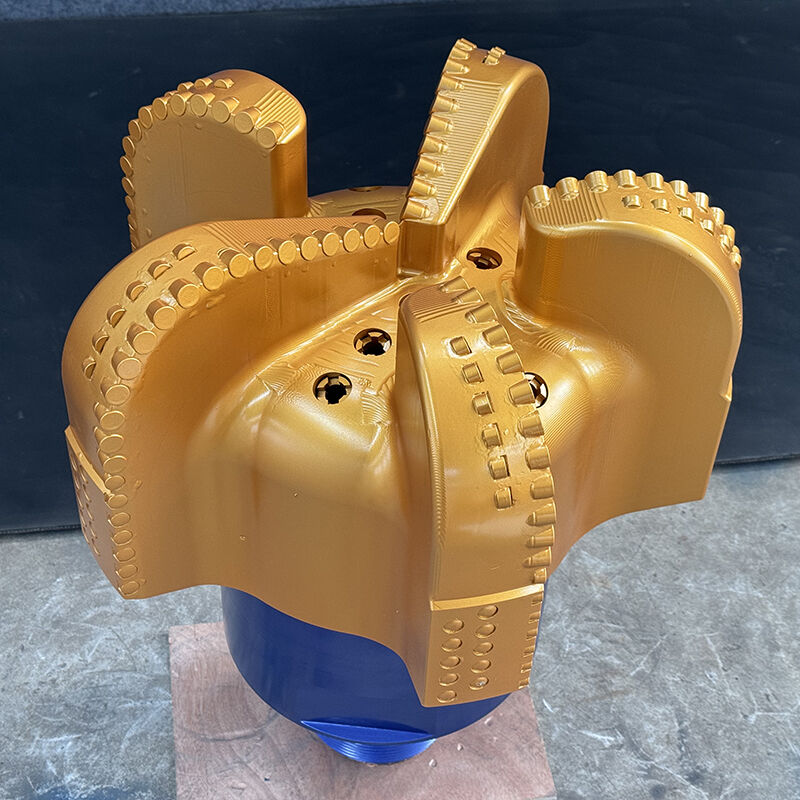

Oil Water Well 5 Blades Double Row Cutters Diamond Pdc Drilling Bit Bits For Sale

PDC composite drill bit is the abbreviation for Polycrystalline Diamond Composite (PDC) drill bit, which is composed of polycrystalline diamond cutting blocks embedded or sintered into the drill bit body. It is mainly used for drilling operations in soft to medium hard formations. Its cutting teeth achieve efficient rock breaking through diamond composite sheets, and in the mid to late 20th century, it gradually gained attention due to the problem of mud inclusion in plastic rock layers caused by roller drill bits.

In the early stages of drilling, roller bits were limited by the phenomenon of mud inclusion, which prompted the industry to try to combine the characteristics of scraper bits and roller bits. With the improvement of PDC cutting technology, fixed cutting teeth PDC bits are gradually replacing roller bits, but there are still performance bottlenecks in hard formations. We has developed a new generation of composite drill bits that integrate cone and PDC structures, using a design of main blade PDC teeth for rock breaking and peripheral cone coordinated cutting to address complex geological challenges.

PRODUCT SPECIFICATIONS
product name	5 1/2 inch CM1305 matrix body PDC bit
size	5 1/2 inch,139.7mm
model number	CM1305
series	CM
body type	matrix body
primary cutter size	13mm
number of nozzle	5
number of blade	5
Gauge length	1.5"
Junk Slot Area(in²)	3.8~4.5
connection	3 1/2" Reg PIN
Make Up Torque(KN.m)	10.4~11.4
application	water well,oil well,HDD,exploration,etc
weight	23kg
certificate	SY/T5164,ISO9001:2008
ROCOMMENDED ROCK FORMATION
soft to medium formation with lower compressive strength and good drillability,such as marl,shale,lignite,sandstone,anhydrite,tuff ,etc.
RECOMMENDED OPERATING PARAMETERS
Rotary Speed(RPM)	60~250
Weight On Bit(WOB)	5~45
Max.WOB(KN)	80
Flow Rate(lps)	10~25

Oil Water Well 5 Blades Double Row Cutters Diamond Pdc Drilling Bit Bits For Sale 0

Company Profile

Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.

Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
